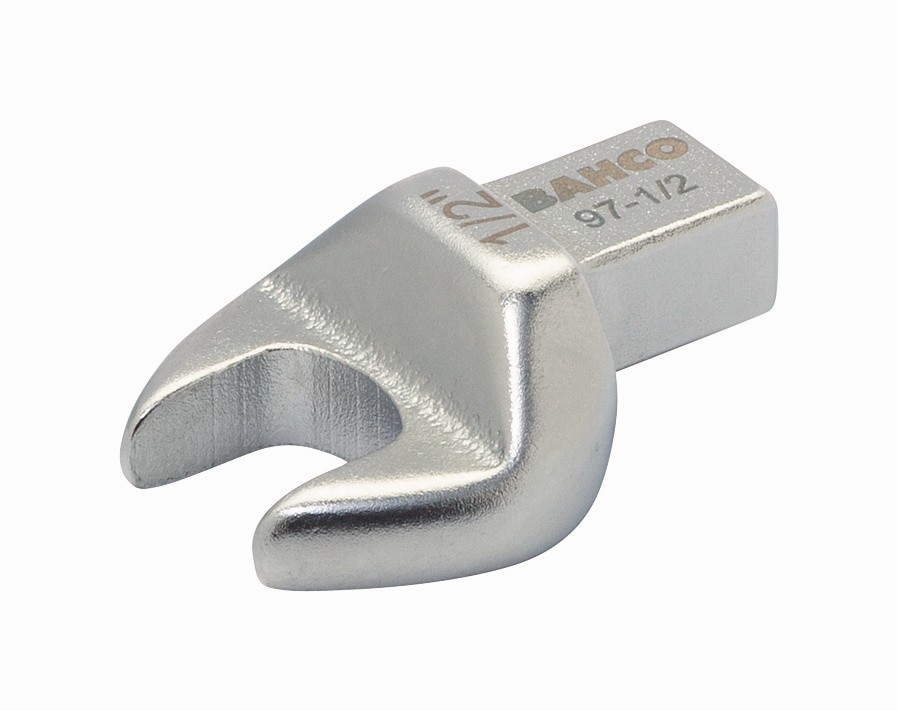

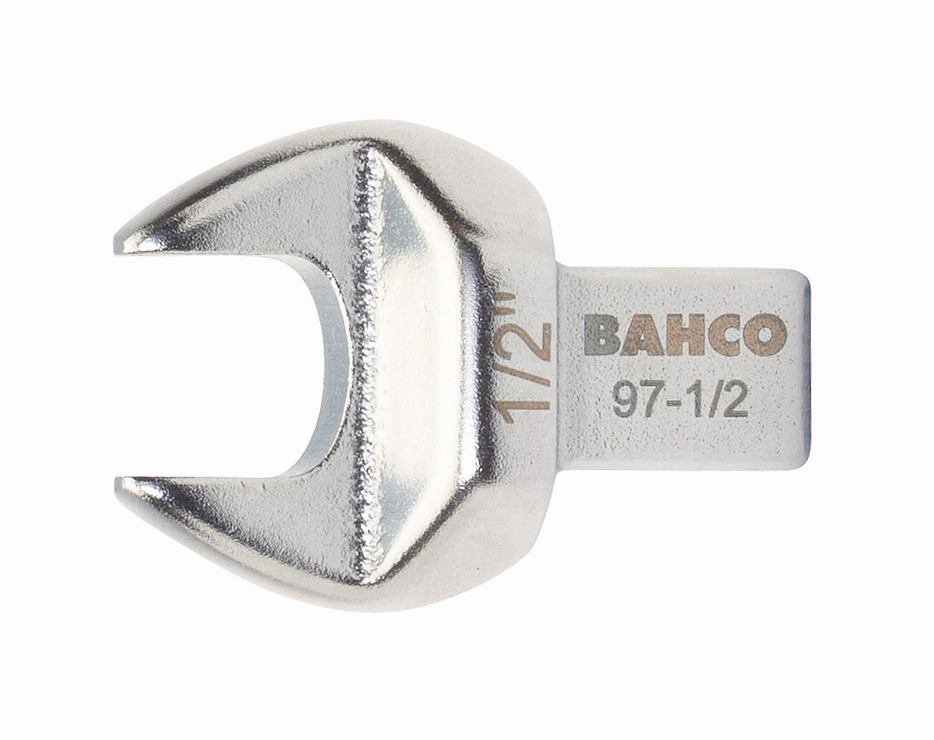

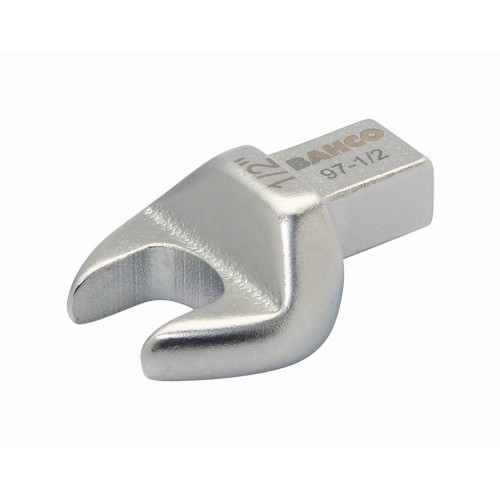

Cabeza intercambiable de boca fija con conector rectangular pulgadas | 9/14/24/277"

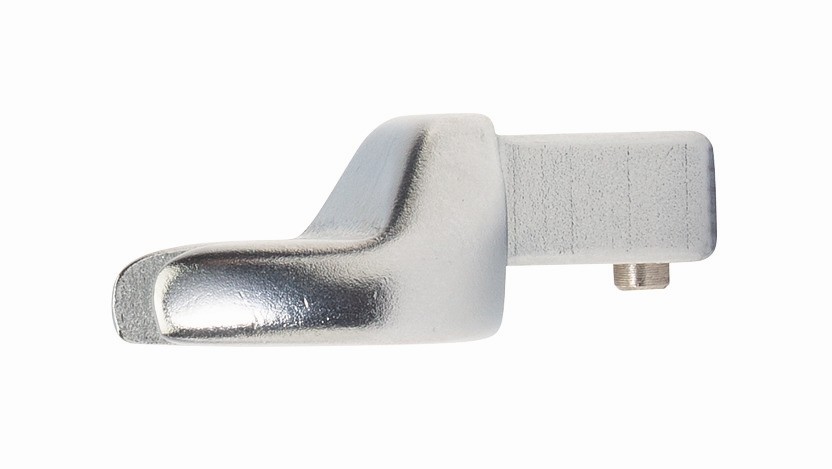

- La cabeza está fijada a la llave dinamométrica con pin un pasador de sujeción retráctil
- La gama abarca conectores desde 9x12 hasta 14x18, aperturas desde 1/4" hasta 1.1/4", desde 6 hasta 360 Nm
- Los tamaños con un * en la longitud de par de torsión requieren el cálculo del ajuste del par objetivo
- Apto para llaves 7465, 74W9, 74W14, 74P9, 74P14, IZO-D, TAW9, TAW14, TAWM9 y TAWM14
Proveedor:
SNA EUROPE (BAHCO)Referencias

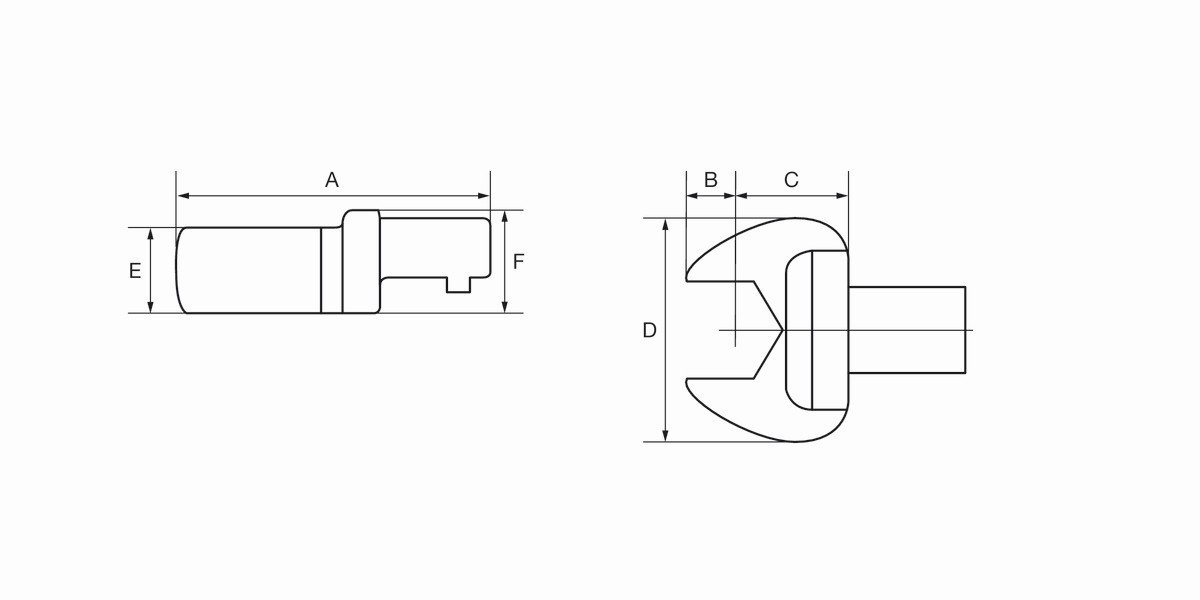

| Artículo | PVR | Variante | Medidas de conexión, mm | Longitud total | Anchura de la cabeza | Longitud de calibración | Distancia del extremo del tornillo | Altura de trabajo de la cabeza | Altura de la cabeza | Dimensiones del inserto, pulgadas | Máximo par de apriete |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 97-1/4 | - | 97-1/4 | 9x12 mm | 40 mm | 22 mm | 17,5 mm | 7,5 mm | 17 mm | 5 mm | 1/4 in | 6 N·m | 1 |
| 97-5/16 | - | 97-5/16 | 9x12 mm | 40 mm | 22 mm | 17,5 mm | 7,5 mm | 17 mm | 5 mm | 5/16 in | 13 N·m | 1 |
| 97-3/8 | - | 97-3/8 | 9x12 mm | 40 mm | 26 mm | 17,5 mm | 7,5 mm | 17 mm | 5,5 mm | 3/8 in | 24 N·m | 1 |
| 97-7/16 | - | 97-7/16 | 9x12 mm | 40 mm | 26 mm | 17.5 mm | 7,5 mm | 17 mm | 5,5 mm | 7/16 in | 32 N·m | 1 |
| 97-1/2 | - | 97-1/2 | 9x12 mm | 40 mm | 30 mm | 17,5 mm | 7,5 mm | 17 mm | 7 mm | 1/2 in | 51 N·m | 1 |
| 97-17/32 | - | 97-17/32 | 9x12 mm | 41 mm | 35 mm | 17,5 mm | 8,5 mm | 17 mm | 8 mm | 17/32 in | 63 N·m | 1 |
| 97-9/16 | - | 97-9/16 | 9x12 mm | 40 mm | 35 mm | 17,5 mm | 7,5 mm | 17 mm | 8 mm | 9/16 in | 77 N·m | 1 |
| 97-5/8 | - | 97-5/8 | 9x12 mm | 43 mm | 38 mm | 17,5 mm | 10,5 mm | 17 mm | 8 mm | 5/8 in | 92 N·m | 1 |
| 97-11/16 | - | 97-11/16 | 9x12 mm | 55 mm | 42 mm | 25* mm | 15 mm | 17 mm | 8 mm | 11/16 in | 125 N·m | 1 |
| 97-3/4 | - | 97-3/4 | 9x12 mm | 50 mm | 42 mm | 25* mm | 10 mm | 17 mm | 8 mm | 3/4 in | 145 N·m | 1 |
| 97-13/16 | - | 97-13/16 | 9x12 mm | 50 mm | 50 mm | 25* mm | 9 mm | 17 mm | 8 mm | 13/16 in | 160 N·m | 1 |
| 97-7/8 | - | 97-7/8 | 9x12 mm | 52 mm | 50 mm | 25* mm | 10 mm | 17 mm | 8 mm | 7/8 in | 160 N·m | 1 |
| 97-15/16 | - | 97-15/16 | 9x12 mm | 45 mm | 53 mm | 25 mm | 5 mm | 17 mm | 8 mm | 15/16 in | 160 N·m | 1 |
| 97-1 | - | 97-1 | 9x12 mm | 60 mm | 53 mm | 25* mm | 20 mm | 17 mm | 8 mm | 1 in | 160 N·m | 1 |
| 147-7/16 | - | 147-7/16 | 14x18 mm | 55 mm | 30 mm | 25 mm | 7 mm | 20 mm | 7 mm | 7/16 in | 32 N·m | 1 |
| 147-1/2 | - | 147-1/2 | 14x18 mm | 55 mm | 32 mm | 25 mm | 7 mm | 20 mm | 7 mm | 1/2 in | 51 N·m | 1 |
| 147-9/16 | - | 147-9/16 | 14x18 mm | 55 mm | 35 mm | 25 mm | 7 mm | 20 mm | 8 mm | 9/16 in | 77 N·m | 1 |
| 147-5/8 | - | 147-5/8 | 14x18 mm | 55 mm | 38 mm | 25 mm | 7 mm | 20 mm | 9 mm | 5/8 in | 92 N·m | 1 |
| 147-11/16 | - | 147-11/16 | 14x18 mm | 53 mm | 38 mm | 25 mm | 5 mm | 20 mm | 9 mm | 11/16 in | 109 N·m | 1 |
| 147-3/4 | - | 147-3/4 | 14x18 mm | 60 mm | 42 mm | 25 mm | 12 mm | 20 mm | 10 mm | 3/4 in | 145 N·m | 1 |
| 147-13/16 | - | 147-13/16 | 14x18 mm | 62 mm | 50 mm | 25 mm | 14 mm | 20 mm | 11 mm | 13/16 in | 190 N·m | 1 |
| 147-7/8 | - | 147-7/8 | 14x18 mm | 60 mm | 50 mm | 25 mm | 12 mm | 20 mm | 11 mm | 7/8 in | 220 N·m | 1 |
| 147-15/16 | - | 147-15/16 | 14x18 mm | 63 mm | 53 mm | 25 mm | 15 mm | 20 mm | 13 mm | 15/16 in | 280 N·m | 1 |
| 147-1 | - | 147-1 | 14x18 mm | 60 mm | 53 mm | 25 mm | 12 mm | 20 mm | 13 mm | 1 in | 360 N·m | 1 |
| 147-1.1/8 | - | 147-1.1/8 | 14x18 mm | 68 mm | 68 mm | 30* mm | 15 mm | 20 mm | 13 mm | 1 1/8 in | 360 N·m | 1 |
| 147-1.1/4 | - | 147-1.1/4 | 14x18 mm | 75 mm | 70 mm | 35* mm | 17 mm | 20 mm | 13 mm | 1 1/4 in | 360 N·m | 1 |
