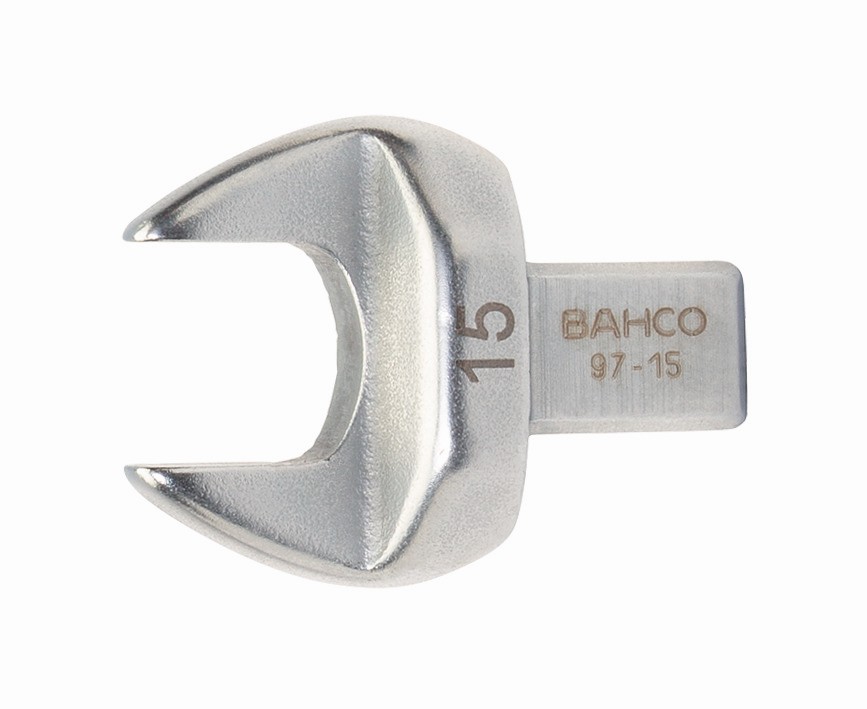

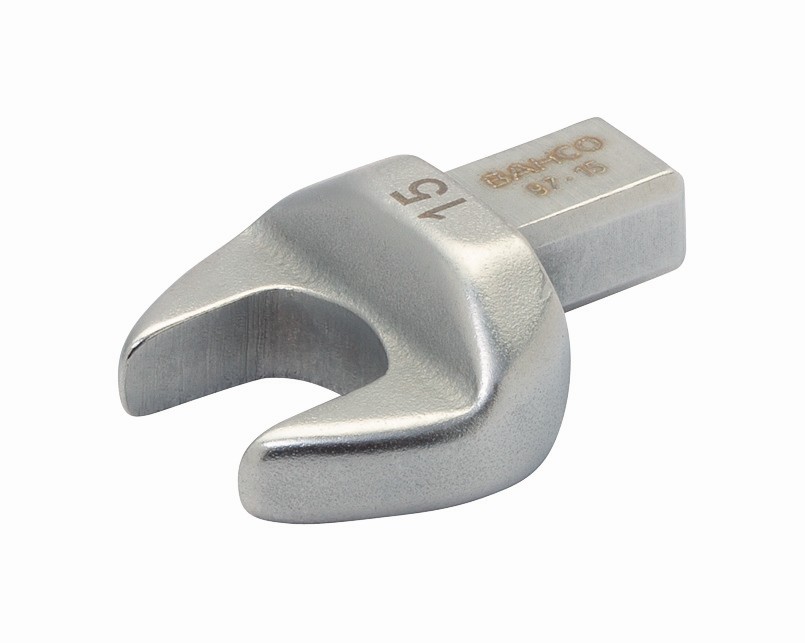

Cabeza intercambiable de boca fija con conector rectangular métrica | 9/14/24/277
- La cabeza está fijada a la llave dinamométrica con un pin pasador de sujeción retráctil
- La gama abarca conectores desde 9x12 hasta 27x36, aperturas desde 7 hasta 95 mm, desde 9 Nm hasta 3000 Nm
- Los tamaños con un * en la longitud de par de torsión requieren el cálculo del ajuste del par objetivo
- Apto para llaves 7465, 74W9, 74W14, 74P9, 74P14, IZO-D, TAW9, TAW14, TAW24, TAWM9, TAWM14 y TAWM24
Proveedor:
SNA EUROPE (BAHCO)Referencias
| Artículo | PVR | Variante | Longitud total | Anchura de la cabeza | Longitud de calibración | Distancia del extremo del tornillo | Altura de trabajo de la cabeza | Altura de la cabeza | Medidas de conexión, mm | Dimensiones del inserto, mm | Máximo par de apriete |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 97-7 | - | 97-7 | 40 mm | 22 mm | 17,5 mm | 7,5 mm | 17 mm | 5,5 mm | 9x12 mm | 7 mm | 9 N·m | 1 |
| 97-8 | - | 97-8 | 40 mm | 22 mm | 17,5 mm | 7,5 mm | 17 mm | 5,5 mm | 9x12 mm | 8 mm | 13 N·m | 1 |
| 97-9 | - | 97-9 | 40 mm | 25 mm | 17,5 mm | 7,5 mm | 17 mm | 6 mm | 9x12 mm | 9 mm | 18 N·m | 1 |
| 97-10 | - | 97-10 | 40 mm | 25 mm | 17,5 mm | 7,5 mm | 17 mm | 6 mm | 9x12 mm | 10 mm | 24 N·m | 1 |
| 97-11 | - | 97-11 | 40 mm | 25 mm | 17,5 mm | 7,5 mm | 17 mm | 6 mm | 9x12 mm | 11 mm | 32 N·m | 1 |
| 97-12 | - | 97-12 | 40 mm | 29 mm | 17,5 mm | 7,5 mm | 17 mm | 7 mm | 9x12 mm | 12 mm | 41 N·m | 1 |
| 97-13 | - | 97-13 | 40 mm | 29 mm | 17,5 mm | 7,5 mm | 17 mm | 7 mm | 9x12 mm | 13 mm | 51 N·m | 1 |
| 97-14 | - | 97-14 | 40 mm | 33 mm | 17,5 mm | 7,5 mm | 17 mm | 8 mm | 9x12 mm | 14 mm | 63 N·m | 1 |
| 97-15 | - | 97-15 | 42 mm | 33 mm | 17,5 mm | 9,5 mm | 17 mm | 8 mm | 9x12 mm | 15 mm | 77 N·m | 1 |
| 97-16 | - | 97-16 | 42 mm | 38 mm | 17,5 mm | 9.5 mm | 17 mm | 8 mm | 9x12 mm | 16 mm | 92 N·m | 1 |
| 97-17 | - | 97-17 | 42 mm | 38 mm | 17,5 mm | 9,5 mm | 17 mm | 8 mm | 9x12 mm | 17 mm | 109 N·m | 1 |
| 97-18 | - | 97-18 | 50 mm | 42,5 mm | 25* mm | 10 mm | 17 mm | 8 mm | 9x12 mm | 18 mm | 125 N·m | 1 |
| 97-19 | - | 97-19 | 50 mm | 42,5 mm | 25* mm | 10 mm | 17 mm | 8 mm | 9x12 mm | 19 mm | 145 N·m | 1 |
| 97-21 | - | 97-21 | 55 mm | 48 mm | 25* mm | 15 mm | 17 mm | 8 mm | 9x12 mm | 21 mm | 160 N·m | 1 |
| 97-22 | - | 97-22 | 55 mm | 48 mm | 25* mm | 15 mm | 17 mm | 8 mm | 9x12 mm | 22 mm | 160 N·m | 1 |
| 97-24 | - | 97-24 | 55 mm | 52 mm | 25* mm | 15 mm | 17 mm | 8 mm | 9x12 mm | 24 mm | 160 N·m | 1 |
| 97-27 | - | 97-27 | 58 mm | 57 mm | 30* mm | 13 mm | 17 mm | 8 mm | 9x12 mm | 27 mm | 160 N·m | 1 |
| 97-30 | - | 97-30 | 65 mm | 66 mm | 35* mm | 15 mm | 17 mm | 8 mm | 9x12 mm | 30 mm | 160 N·m | 1 |
| 97-32 | - | 97-32 | 65 mm | 66 mm | 35* mm | 15 mm | 17 mm | 8 mm | 9x12 mm | 32 mm | 160 N·m | 1 |
| 147-13 | - | 147-13 | 55 mm | 32 mm | 25 mm | 7 mm | 20 mm | 8 mm | 14x18 mm | 13 mm | 51 N·m | 1 |
| 147-14 | - | 147-14 | 55 mm | 32 mm | 25 mm | 7 mm | 20 mm | 8 mm | 14x18 mm | 14 mm | 63 N·m | 1 |
| 147-15 | - | 147-15 | 57 mm | 32 mm | 25 mm | 9 mm | 20 mm | 8 mm | 14x18 mm | 15 mm | 77 N·m | 1 |
| 147-16 | - | 147-16 | 55 mm | 38 mm | 25 mm | 7 mm | 20 mm | 9 mm | 14x18 mm | 16 mm | 92 N·m | 1 |
| 147-17 | - | 147-17 | 57 mm | 38 mm | 25 mm | 9 mm | 20 mm | 9 mm | 14x18 mm | 17 mm | 109 N·m | 1 |
| 147-18 | - | 147-18 | 60 mm | 42 mm | 25 mm | 12 mm | 20 mm | 10 mm | 14x18 mm | 18 mm | 125 N·m | 1 |
| 147-19 | - | 147-19 | 60 mm | 42 mm | 25 mm | 12 mm | 20 mm | 10 mm | 14x18 mm | 19 mm | 145 N·m | 1 |
| 147-21 | - | 147-21 | 62 mm | 48 mm | 25 mm | 14 mm | 20 mm | 12 mm | 14x18 mm | 21 mm | 190 N·m | 1 |
| 147-22 | - | 147-22 | 63 mm | 48 mm | 25 mm | 15 mm | 20 mm | 12 mm | 14x18 mm | 22 mm | 220 N·m | 1 |
| 147-24 | - | 147-24 | 63 mm | 52 mm | 25 mm | 15 mm | 20 mm | 13 mm | 14x18 mm | 24 mm | 280 N·m | 1 |
| 147-25 | - | 147-25 | 60 mm | 52 mm | 25 mm | 12 mm | 20 mm | 13 mm | 14x18 mm | 25 mm | 320 N·m | 1 |
| 147-27 | - | 147-27 | 67 mm | 57 mm | 30* mm | 14 mm | 20 mm | 14 mm | 14x18 mm | 27 mm | 360 N·m | 1 |
| 147-30 | - | 147-30 | 75 mm | 65 mm | 35* mm | 17 mm | 20 mm | 14 mm | 14x18 mm | 30 mm | 360 N·m | 1 |
| 147-32 | - | 147-32 | 75 mm | 65 mm | 35* mm | 17 mm | 20 mm | 14 mm | 14x18 mm | 32 mm | 360 N·m | 1 |
| 147-33 | - | 147-33 | 83 mm | 68 mm | 40* mm | 20 mm | 20 mm | 14 mm | 14x18 mm | 33 mm | 360 N·m | 1 |
| 147-34 | - | 147-34 | 80 mm | 68 mm | 40* mm | 17 mm | 20 mm | 14 mm | 14x18 mm | 34 mm | 360 N·m | 1 |
| 147-35 | - | 147-35 | 80 mm | 68 mm | 40* mm | 17 mm | 20 mm | 14 mm | 14x18 mm | 35 mm | 360 N·m | 1 |
| 147-36 | - | 147-36 | 80 mm | 68 mm | 40* mm | 17 mm | 20 mm | 14 mm | 14x18 mm | 36 mm | 360 N·m | 1 |
| 147-37 | - | 147-37 | 80 mm | 84 mm | 50* mm | 7 mm | 20 mm | 14 mm | 14x18 mm | 37 mm | 360 N·m | 1 |
| 147-38 | - | 147-38 | 82 mm | 84 mm | 50* mm | 9 mm | 20 mm | 14 mm | 14x18 mm | 38 mm | 360 N·m | 1 |
| 147-39 | - | 147-39 | 90 mm | 84 mm | 50* mm | 17 mm | 20 mm | 14 mm | 14x18 mm | 39 mm | 360 N·m | 1 |
| 147-41 | - | 147-41 | 90 mm | 84 mm | 50* mm | 17 mm | 20 mm | 14 mm | 14x18 mm | 41 mm | 360 N·m | 1 |
| 147-45 | - | 147-45 | 92 mm | 90 mm | 50* mm | 19 mm | 20 mm | 14 mm | 14x18 mm | 45 mm | 360 N·m | 1 |
| 147-46 | - | 147-46 | 90 mm | 90 mm | 50* mm | 17 mm | 20 mm | 14 mm | 14x18 mm | 46 mm | 360 N·m | 1 |
| 147-50 | - | 147-50 | 100 mm | 100 mm | 55* mm | 22 mm | 20 mm | 14 mm | 14x18 mm | 50 mm | 360 N·m | 1 |
| 147-55 | - | 147-55 | 100 mm | 100 mm | 55* mm | 22 mm | 20 mm | 14 mm | 14x18 mm | 55 mm | 360 N·m | 1 |
| 147-60 | - | 147-60 | 110 mm | 110 mm | 60* mm | 27 mm | 20 mm | 14 mm | 14x18 mm | 60 mm | 360 N·m | 1 |
| 147-65 | - | 147-65 | 123 mm | 129 mm | 65* mm | 30 mm | 20 mm | 14 mm | 14x18 mm | 65 mm | 360 N·m | 1 |
| 147-68 | - | 147-68 | 123 mm | 129 mm | 70* mm | 30 mm | 20 mm | 14 mm | 14x18 mm | 68 mm | 360 N·m | 1 |
| 147-70 | - | 147-70 | 123 mm | 129 mm | 70* mm | 30 mm | 20 mm | 14 mm | 14x18 mm | 70 mm | 360 N·m | 1 |
| 147-75 | - | 147-75 | 123 mm | 129 mm | 70* mm | 30 mm | 20 mm | 14 mm | 14x18 mm | 75 mm | 360 N·m | 1 |
| 147-90 | - | 147-90 | 140 mm | 156 mm | 80* mm | 37 mm | 20 mm | 14 mm | 14x18 mm | 90 mm | 360 N·m | 1 |
| 247-24 | - | 247-24 | 85 mm | 61 mm | 35 mm | 10 mm | 35 mm | 25 mm | 24x32 mm | 24 mm | 1200 N·m | 1 |
| 247-27 | - | 247-27 | 85 mm | 66,5 mm | 35 mm | 10 mm | 35 mm | 25 mm | 24x32 mm | 27 mm | 1200 N·m | 1 |
| 247-30 | - | 247-30 | 90 mm | 68,5 mm | 35 mm | 15 mm | 35 mm | 25 mm | 24x32 mm | 30 mm | 1200 N·m | 1 |
| 247-32 | - | 247-32 | 90 mm | 68,5 mm | 35 mm | 15 mm | 35 mm | 25 mm | 24x32 mm | 32 mm | 1200 N·m | 1 |
| 247-34 | - | 247-34 | 90 mm | 73,5 mm | 40* mm | 10 mm | 35 mm | 25 mm | 24x32 mm | 34 mm | 1200 N·m | 1 |
| 247-36 | - | 247-36 | 92 mm | 73,5 mm | 40* mm | 12 mm | 35 mm | 25 mm | 24x32 mm | 36 mm | 1200 N·m | 1 |
| 247-41 | - | 247-41 | 105 mm | 86 mm | 50* mm | 15 mm | 35 mm | 25 mm | 24x32 mm | 41 mm | 1200 N·m | 1 |
| 247-46 | - | 247-46 | 110 mm | 92 mm | 50* mm | 20 mm | 35 mm | 25 mm | 24x32 mm | 46 mm | 1200 N·m | 1 |
| 247-50 | - | 247-50 | 117 mm | 104 mm | 55* mm | 22 mm | 35 mm | 25 mm | 24x32 mm | 50 mm | 1200 N·m | 1 |
| 247-55 | - | 247-55 | 118 mm | 104 mm | 55* mm | 23 mm | 35 mm | 25 mm | 24x32 mm | 55 mm | 1200 N·m | 1 |
| 247-60 | - | 247-60 | 125 mm | 114 mm | 60* mm | 25 mm | 35 mm | 25 mm | 24x32 mm | 60 mm | 1200 N·m | 1 |
| 277-30 | - | 277-30 | 110 mm | 85 mm | 50 mm | 20 mm | 40 mm | 28 mm | 27x36 mm | 30 mm | 3000 N·m | 1 |
| 277-32 | - | 277-32 | 110 mm | 85 mm | 50 mm | 20 mm | 40 mm | 28 mm | 27x36 mm | 32 mm | 3000 N·m | 1 |
| 277-34 | - | 277-34 | 105 mm | 88 mm | 50 mm | 15 mm | 40 mm | 28 mm | 27x36 mm | 34 mm | 3000 N·m | 1 |
| 277-36 | - | 277-36 | 105 mm | 88 mm | 50 mm | 15 mm | 40 mm | 28 mm | 27x36 mm | 36 mm | 3000 N·m | 1 |
| 277-41 | - | 277-41 | 107 mm | 92 mm | 50 mm | 17 mm | 40 mm | 28 mm | 27x36 mm | 41 mm | 3000 N·m | 1 |
| 277-46 | - | 277-46 | 110 mm | 98 mm | 50 mm | 20 mm | 40 mm | 28 mm | 27x36 mm | 46 mm | 3000 N·m | 1 |
| 277-50 | - | 277-50 | 117 mm | 118 mm | 55* mm | 22 mm | 40 mm | 28 mm | 27x36 mm | 50 mm | 3000 N·m | 1 |
| 277-55 | - | 277-55 | 117 mm | 118 mm | 55* mm | 22 mm | 40 mm | 28 mm | 27x36 mm | 55 mm | 3000 N·m | 1 |
| 277-60 | - | 277-60 | 125 mm | 130 mm | 60* mm | 25 mm | 40 mm | 28 mm | 27x36 mm | 60 mm | 3000 N·m | 1 |
