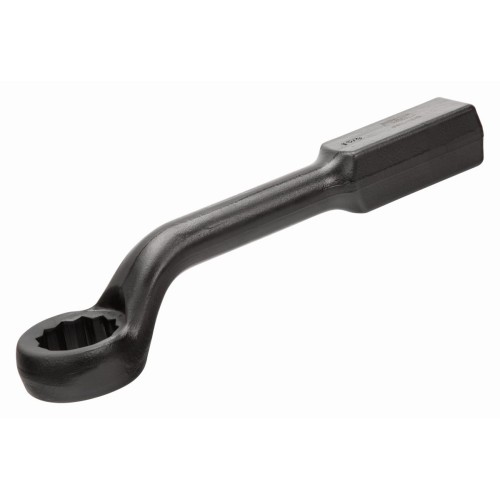

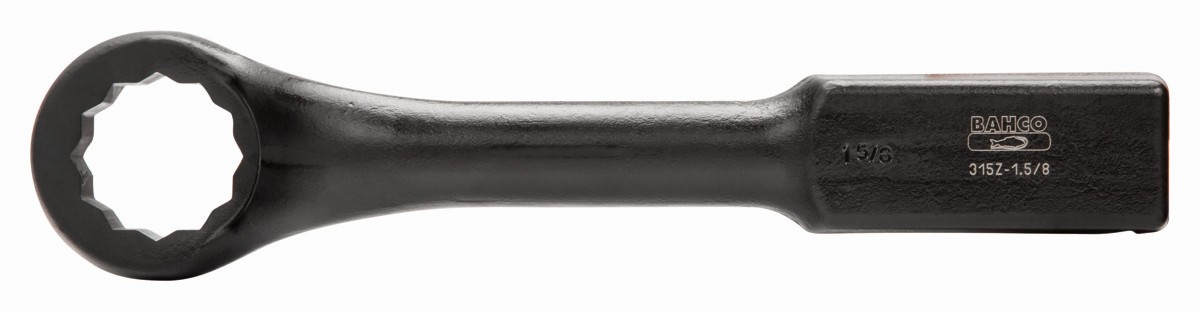

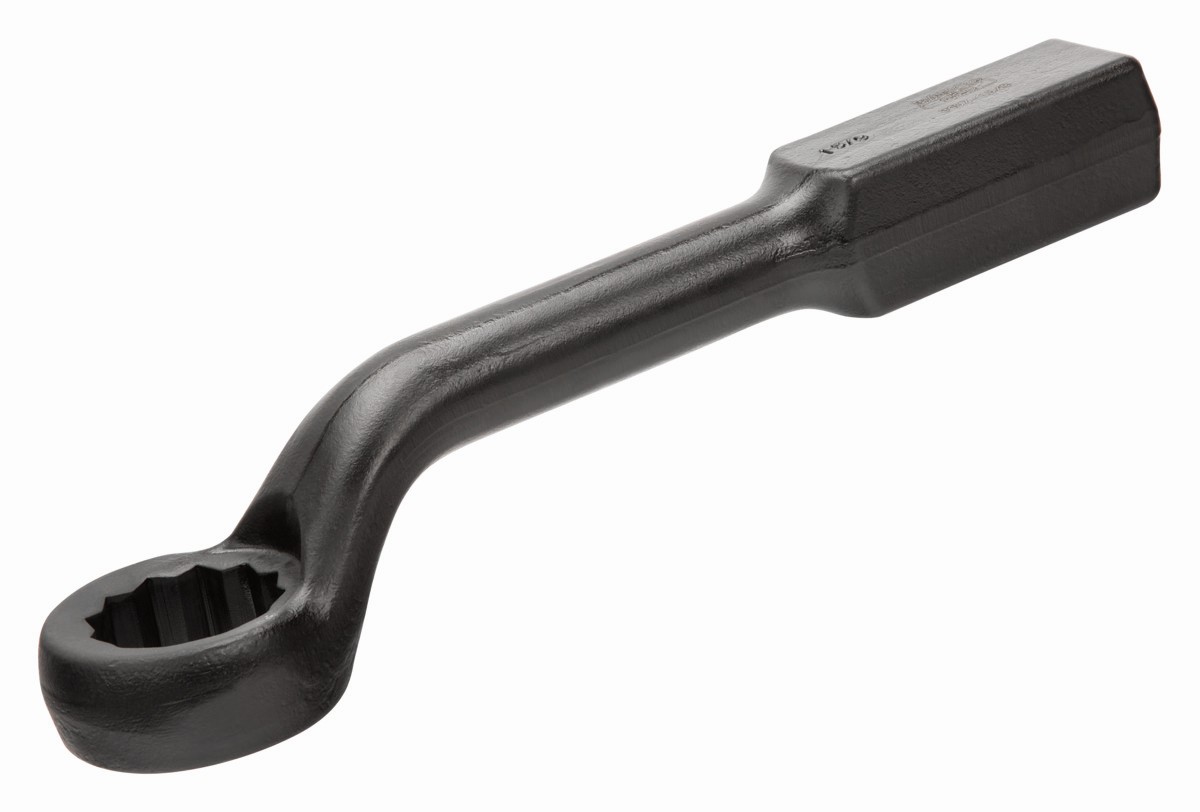

Llaves de golpe extra-acodadas imperiales | 315Z

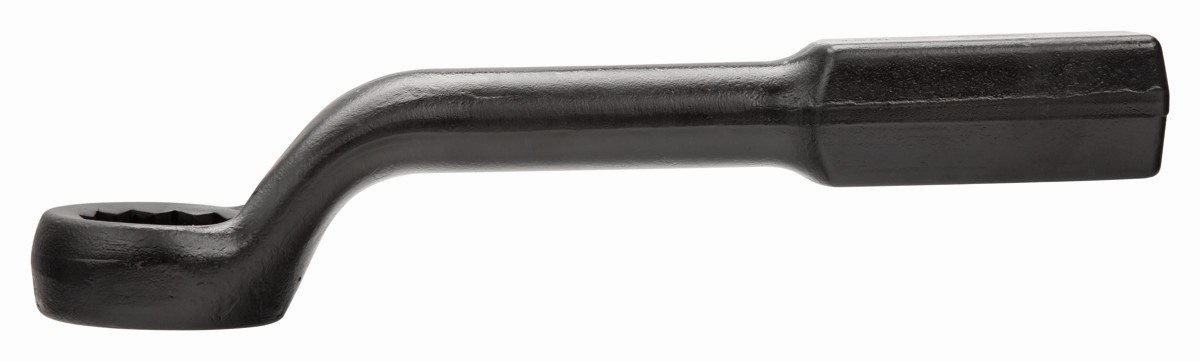

- Cabeza acodada 45°
- Anillo de perfil de 12 puntos
- Pavonado y barnizado antioxidante
- Aleación especial de acero al carbono forjado, de alta resistencia
Proveedor:
SNA EUROPE (BAHCO)Referencias

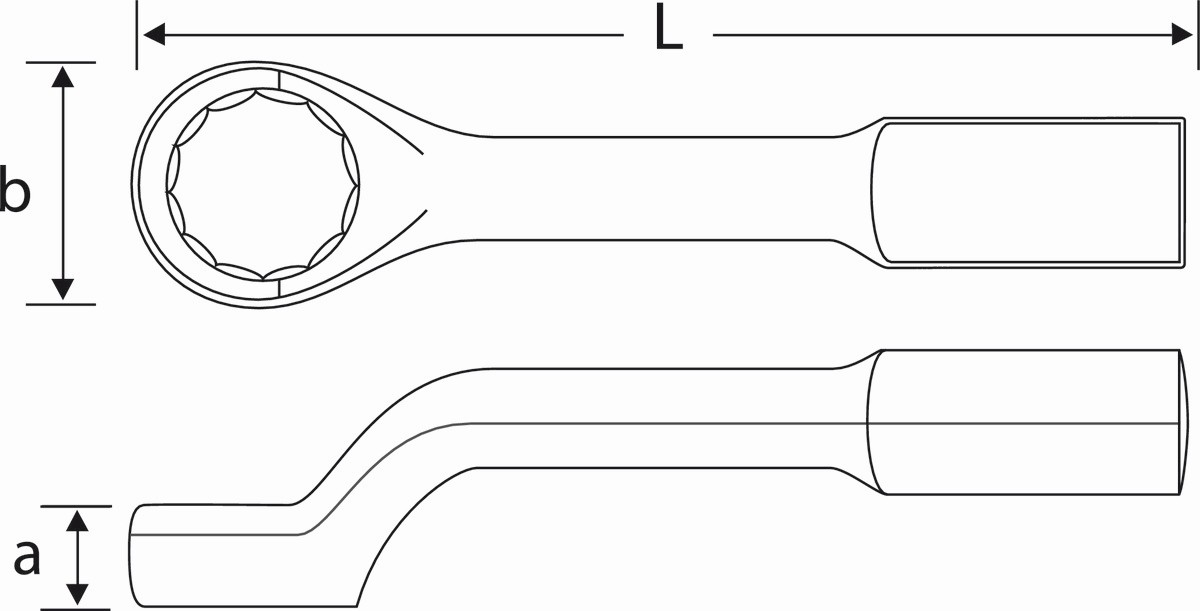

| Artículo | PVR | Variante | Tamaño de la llave, mm | Longitud, mm L | Grosor del anillo | Anchura del anillo |  |
|---|---|---|---|---|---|---|---|
| 315Z-1.1/16 | - | 315Z-1.1/16 | 1.1/16 in mm | 279 mm | 23 mm | 51 mm | 1 |
| 315Z-1.1/8 | - | 315Z-1.1/8 | 1.1/8 in mm | 279 mm | 23 mm | 51 mm | 1 |
| 315Z-1.3/16 | - | 315Z-1.3/16 | 1.3/16 in mm | 279 mm | 23 mm | 54 mm | 1 |
| 315Z-1.1/4 | - | 315Z-1.1/4 | 1.1/4 in mm | 279 mm | 23 mm | 54 mm | 1 |
| 315Z-1.5/16 | - | 315Z-1.5/16 | 1.5/16 in mm | 279 mm | 23 mm | 54 mm | 1 |
| 315Z-1.3/8 | - | 315Z-1.3/8 | 1.3/8 in mm | 279 mm | 23 mm | 54 mm | 1 |
| 315Z-1.7/16 | - | 315Z-1.7/16 | 1.7/16 in mm | 317 mm | 29 mm | 70 mm | 1 |
| 315Z-1.1/2 | - | 315Z-1.1/2 | 1.1/2 in mm | 317 mm | 29 mm | 70 mm | 1 |
| 315Z-1.5/8 | - | 315Z-1.5/8 | 1.5/8 in mm | 317 mm | 29 mm | 70 mm | 1 |
| 315Z-1.11/16 | - | 315Z-1.11/16 | 1.11/16 in mm | 317 mm | 29 mm | 73 mm | 1 |
| 315Z-1.3/4 | - | 315Z-1.3/4 | 1.3/4 in mm | 317 mm | 29 mm | 73 mm | 1 |
| 315Z-1.13/16 | - | 315Z-1.13/16 | 1.13/16 in mm | 317 mm | 29 mm | 76 mm | 1 |
| 315Z-1.7/8 | - | 315Z-1.7/8 | 1.7/8 in mm | 317 mm | 29 mm | 76 mm | 1 |
| 315Z-1.15/16 | - | 315Z-1.15/16 | 1.15/16 in mm | 317 mm | 29 mm | 76 mm | 1 |
| 315Z-2 | - | 315Z-2 | 2 mm | 324 mm | 29 mm | 79 mm | 1 |
| 315Z-2.1/16 | - | 315Z-2.1/16 | 2.1/16 in mm | 324 mm | 29 mm | 79 mm | 1 |
| 315Z-2.1/8 | - | 315Z-2.1/8 | 2.1/8 in mm | 355 mm | 35 mm | 92 mm | 1 |
| 315Z-2.3/16 | - | 315Z-2.3/16 | 2.3/16 in mm | 355 mm | 35 mm | 95 mm | 1 |
| 315Z-2.1/4 | - | 315Z-2.1/4 | 2.1/4 in mm | 355 mm | 35 mm | 95 mm | 1 |
| 315Z-2.5/16 | - | 315Z-2.5/16 | 2.5/16 in mm | 355 mm | 35 mm | 95 mm | 1 |
| 315Z-2.3/8 | - | 315Z-2.3/8 | 2.3/8 in mm | 355 mm | 35 mm | 95 mm | 1 |
| 315Z-2.1/2 | - | 315Z-2.1/2 | 2.1/2 in mm | 362 mm | 34 mm | 101 mm | 1 |
| 315Z-2.9/16 | - | 315Z-2.9/16 | 2.9/16 in mm | 362 mm | 34 mm | 105 mm | 1 |
| 315Z-2.5/8 | - | 315Z-2.5/8 | 2.5/8 in mm | 362 mm | 34 mm | 105 mm | 1 |
| 315Z-2.3/4 | - | 315Z-2.3/4 | 2.3/4 in mm | 406 mm | 45 mm | 124 mm | 1 |
| 315Z-2.7/8 | - | 315Z-2.7/8 | 2.7/8 in mm | 406 mm | 45 mm | 124 mm | 1 |
| 315Z-2.15/16 | - | 315Z-2.15/16 | 2.15/16 in mm | 355 mm | 35 mm | 95 mm | 1 |
| 315Z-3 | - | 315Z-3 | 3 in mm | 406 mm | 45 mm | 124 mm | 1 |
| 315Z-3.1/8 | - | 315Z-3.1/8 | 3.1/8 in mm | 406 mm | 45 mm | 126 mm | 1 |
