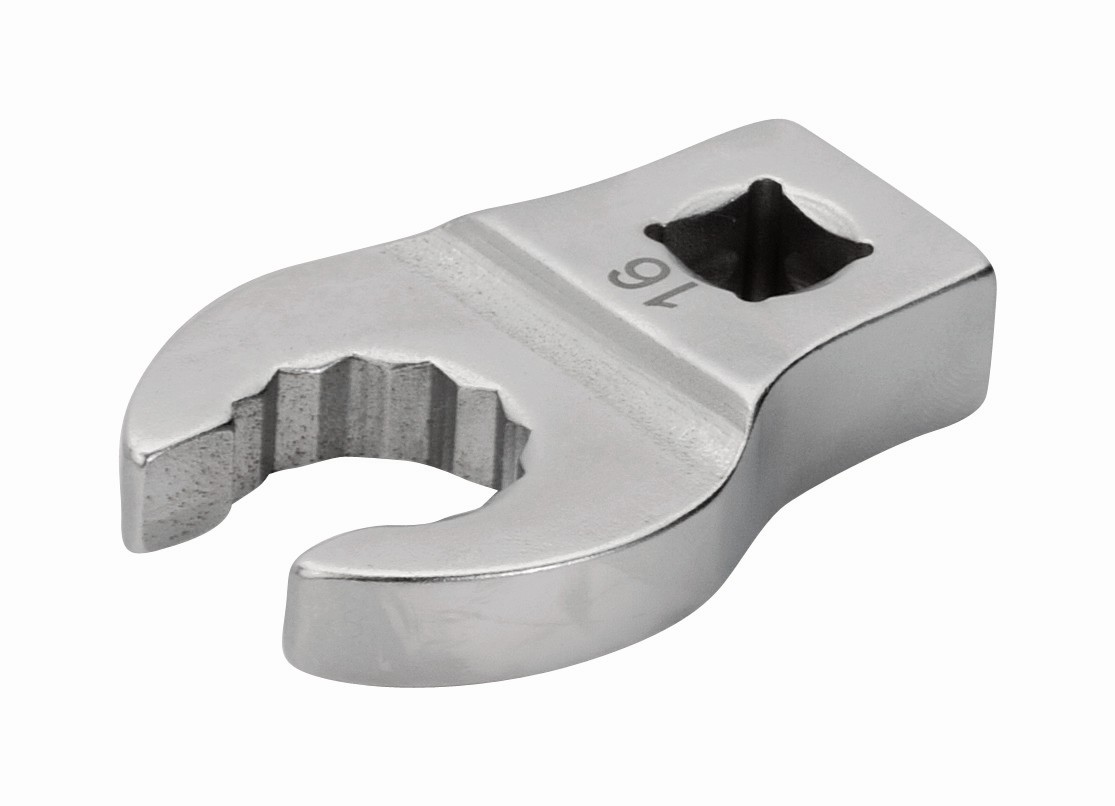

Llaves Crowfoot para racores con cuadrado de 3/8" | -749
- Llave Crowfoot, racores
- Cuadrado de 3/8"
- El acabado cromado brillante proporciona una superficie de gran calidad
- Acero aleado de alto rendimiento
- Normas: ISO 1174 y DIN 3120.
Proveedor:
SNA EUROPE (BAHCO)Referencias

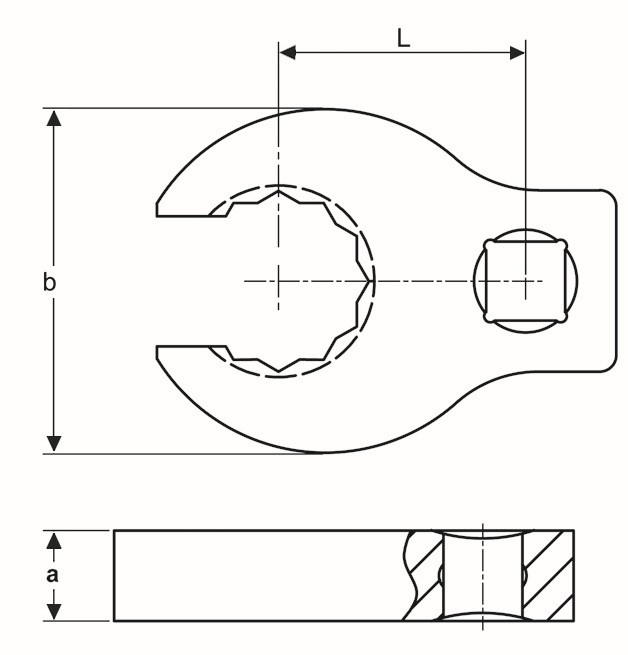

| Artículo | PVR | Variante | Anchura del cuadradillo macho cuadrado, pulg | Tamaño de la llave, mm | Grosor de la boca | Anchura de la boca | Longitud, mm L |  |
|---|---|---|---|---|---|---|---|---|
| 749-10 | - | 749-10 | 3/8 in | 10 mm | 7 mm | 30 mm | 26 mm | 1 |
| 749-11 | - | 749-11 | 3/8 in | 11 mm | 7 mm | 32 mm | 26 mm | 1 |
| 749-13 | - | 749-13 | 3/8 in | 13 mm | 7 mm | 34 mm | 28 mm | 1 |
| 749-14 | - | 749-14 | 3/8 in | 14 mm | 8 mm | 36 mm | 30 mm | 1 |
| 749-15 | - | 749-15 | 3/8 in | 15 mm | 8 mm | 36 mm | 30 mm | 1 |
| 749-16 | - | 749-16 | 3/8 in | 16 mm | 8 mm | 36 mm | 30 mm | 1 |
| 749-17 | - | 749-17 | 3/8 in | 17 mm | 11 mm | 42 mm | 30 mm | 1 |
| 749-18 | - | 749-18 | 3/8 in | 18 mm | 11 mm | 42 mm | 30 mm | 1 |
| 749-19 | - | 749-19 | 3/8 in | 19 mm | 11 mm | 42 mm | 30 mm | 1 |
| 749-20 | - | 749-20 | 3/8 in | 20 mm | 11 mm | 44,6 mm | 35 mm | 1 |
| 749-21 | - | 749-21 | 3/8 in | 21 mm | 11 mm | 45,9 mm | 35 mm | 1 |
| 749-22 | - | 749-22 | 3/8 in | 22 mm | 11 mm | 45,9 mm | 35 mm | 1 |
| 749-23 | - | 749-23 | 3/8 in | 23 mm | 11 mm | 46 mm | 35 mm | 1 |
| 749-24 | - | 749-24 | 3/8 in | 24 mm | 11 mm | 46 mm | 35 mm | 1 |
| 749-25 | - | 749-25 | 3/8 in | 25 mm | 11 mm | 48,5 mm | 35 mm | 1 |
| 749-26 | - | 749-26 | 3/8 in | 26 mm | 11 mm | 52 mm | 35 mm | 1 |
| 749-27 | - | 749-27 | 3/8 in | 27 mm | 11 mm | 52 mm | 35 mm | 1 |
| 749-3/8 | - | 749-3/8 | 3/8 in | 3/8 in | 8 mm | 22 mm | 25 mm | 1 |
| 749-7/16 | - | 749-7/16 | 3/8 in | 7/16 in | 8 mm | 26 mm | 25 mm | 1 |
| 749-1/2 | - | 749-1/2 | 3/8 in | 1/2 in | 8 mm | 30 mm | 25 mm | 1 |
| 749-9/16 | - | 749-9/16 | 3/8 in | 9/16 in | 8 mm | 34 mm | 30 mm | 1 |
| 749-5/8 | - | 749-5/8 | 3/8 in | 5/8 in | 8 mm | 36 mm | 30 mm | 1 |
| 749-11/16 | - | 749-11/16 | 3/8 in | 11/16 in | 11 mm | 42 mm | 30 mm | 1 |
| 749-3/4 | - | 749-3/4 | 3/8 in | 3/4 in | 11 mm | 42 mm | 30 mm | 1 |
| 749-13/16 | - | 749-13/16 | 3/8 in | 13/16 in | 11 mm | 44,6 mm | 35 mm | 1 |
| 749-7/8 | - | 749-7/8 | 3/8 in | 7/8 in | 11 mm | 45,9 mm | 35 mm | 1 |
| 749-15/16 | - | 749-15/16 | 3/8 in | 15/16 in | 11 mm | 46 mm | 35 mm | 1 |
| 749-1 | - | 749-1 | 3/8 in | 1 in | 11 mm | 48,5 mm | 35 mm | 1 |
| 749-1.1/16 | - | 749-1.1/16 | 3/8 in | 1.1/16 in | 11 mm | 52 mm | 35 mm | 1 |
| 749-1.1/8 | - | 749-1.1/8 | 3/8 in | 1.1/8 in | 11 mm | 56 mm | 35 mm | 1 |
| 749-1.3/16 | - | 749-1.3/16 | 3/8 in | 1.3/16 in | 11 mm | 56 mm | 35 mm | 1 |
| 749-1.5/16 | - | 749-1.5/16 | 3/8 in | 1.5/16 in | 11 mm | 62 mm | 35 mm | 1 |
| 749-1.3/8 | - | 749-1.3/8 | 3/8 in | 1.3/8 in | 11 mm | 67,8 mm | 40 mm | 1 |
| 749-1.7/16 | - | 749-1.7/16 | 3/8 in | 1.7/16 in | 11 mm | 70 mm | 40 mm | 1 |
| 749-1.1/2 | - | 749-1.1/2 | 3/8 in | 1.1/2 in | 11 mm | 80 mm | 45 mm | 1 |
| 749-1.9/16 | - | 749-1.9/16 | 3/8 in | 1.9/16 in | 11 mm | 80 mm | 45 mm | 1 |
| 749-1.5/8 | - | 749-1.5/8 | 3/8 in | 1.5/8 in | 11 mm | 80 mm | 45 mm | 1 |
| 749-1.11/16 | - | 749-1.11/16 | 3/8 in | 1.11/16 in | 11 mm | 85 mm | 50 mm | 1 |
| 749-1.3/4 | - | 749-1.3/4 | 3/8 in | 1.3/4 in | 11 mm | 85 mm | 50 mm | 1 |
| 749-1.13/16 | - | 749-1.13/16 | 3/8 in | 1.13/16 in | 11 mm | 85 mm | 50 mm | 1 |
| 749-1.7/8 | - | 749-1.7/8 | 3/8 in | 1.7/8 in | 11 mm | 91 mm | 55 mm | 1 |
| 749-1.15/16 | - | 749-1.15/16 | 3/8 in | 1.15/16 in | 11 mm | 91 mm | 55 mm | 1 |
| 749-2 | - | 749-2 | 3/8 in | 2 in | 11 mm | 91 mm | 55 mm | 1 |
| 749-2.1/8 | - | 749-2.1/8 | 3/8 in | 2.1/8 in | 11 mm | 110 mm | 60 mm | 1 |
| 749-2.3/16 | - | 749-2.3/16 | 3/8 in | 2.3/16 in | 11 mm | 115 mm | 60 mm | 1 |
| 749-2.1/4 | - | 749-2.1/4 | 3/8 in | 2.1/4 in | 11 mm | 115 mm | 60 mm | 1 |
| 749-2.3/8 | - | 749-2.3/8 | 3/8 in | 2.3/8 in | 11 mm | 118 mm | 60 mm | 1 |
| 749-2.5/8 | - | 749-2.5/8 | 3/8 in | 2.5/8 in | 11 mm | 120 mm | 70 mm | 1 |
| 749-2.3/4 | - | 749-2.3/4 | 3/8 in | 2.3/4 in | 11 mm | 125 mm | 70 mm | 1 |
| 749-3.1/8 | - | 749-3.1/8 | 3/8 in | 3.1/8 in | 11 mm | 130 mm | 75 mm | 1 |
