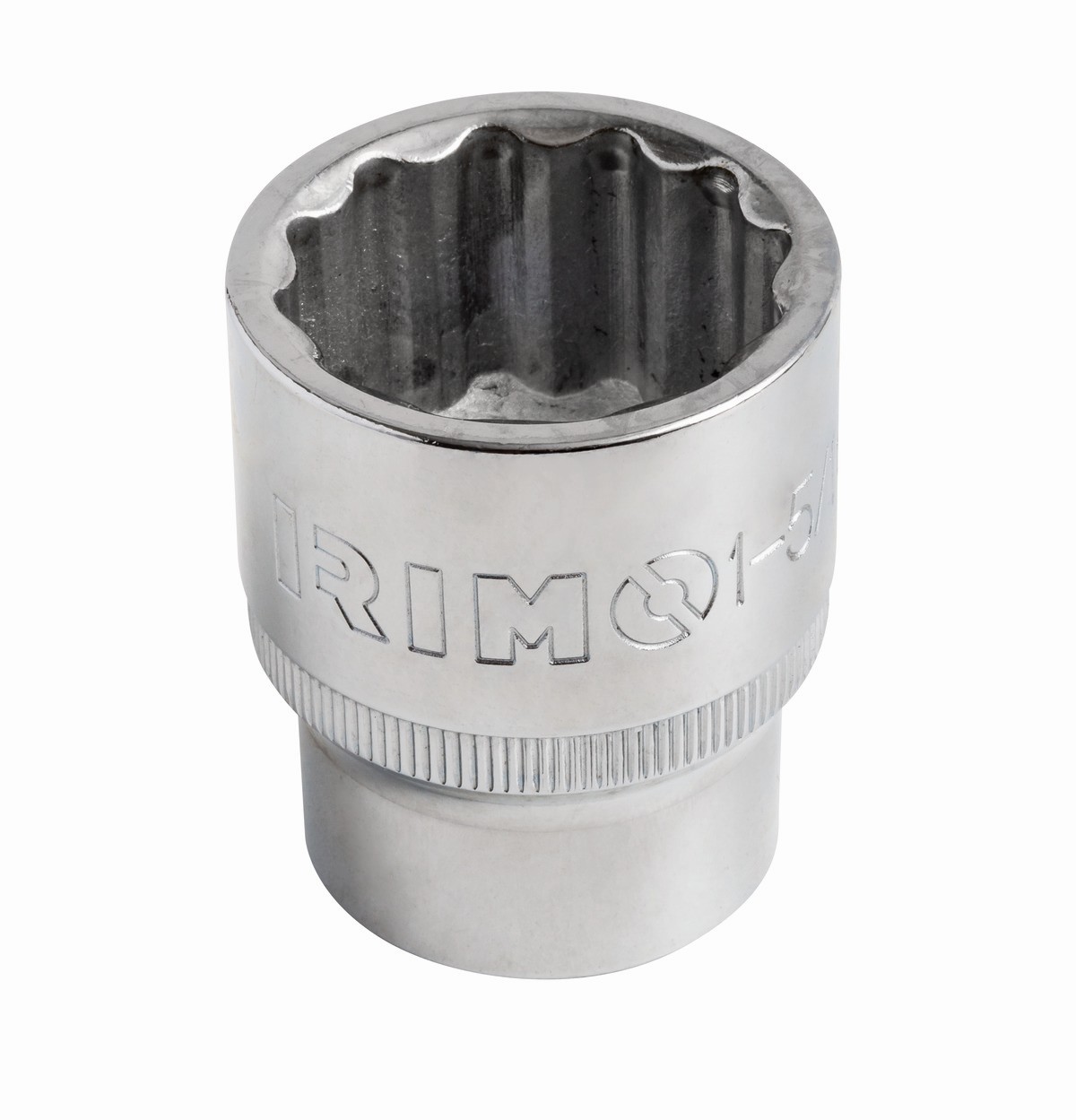

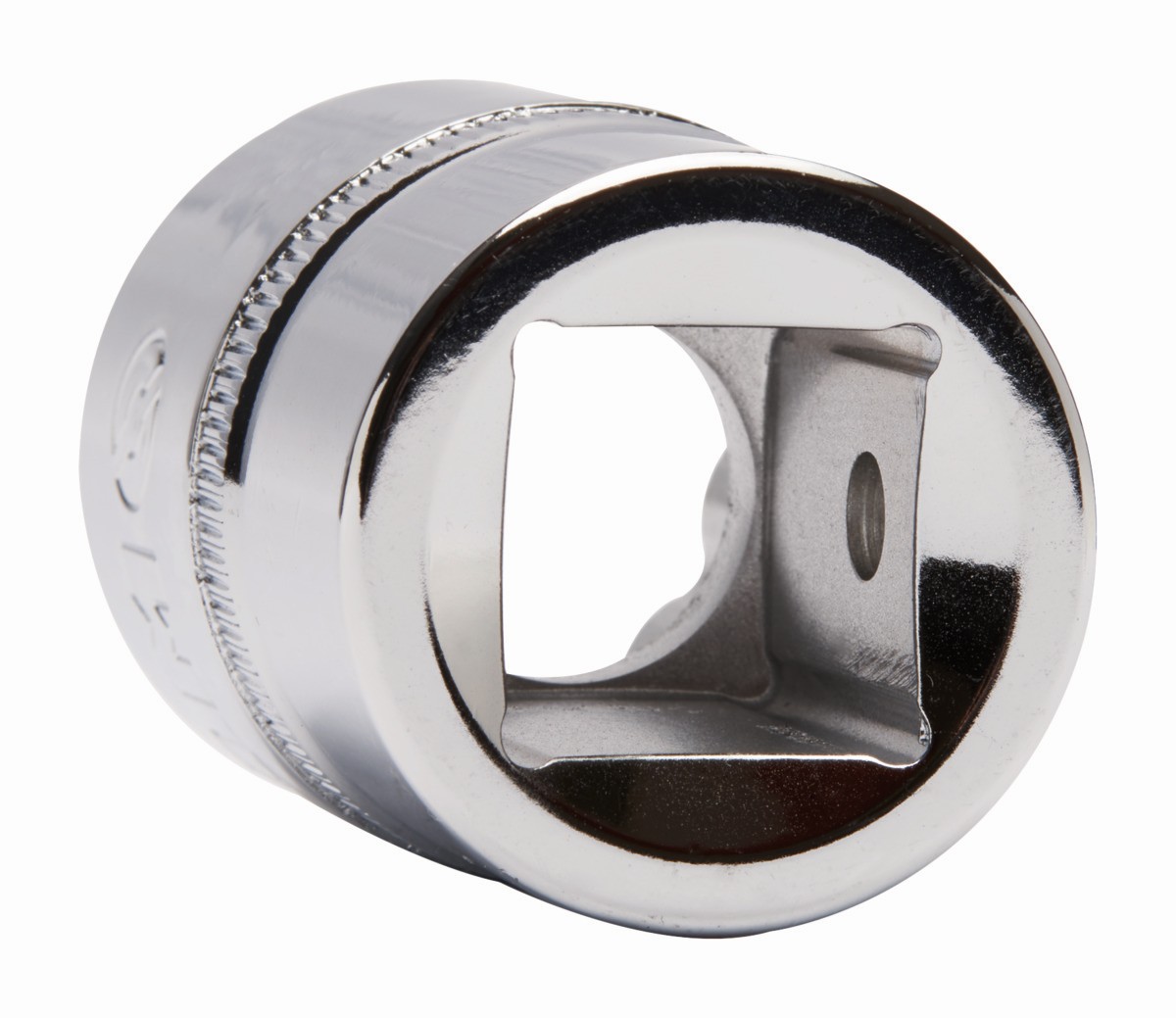

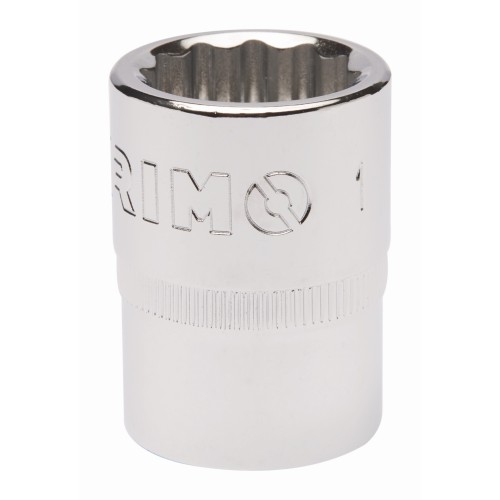

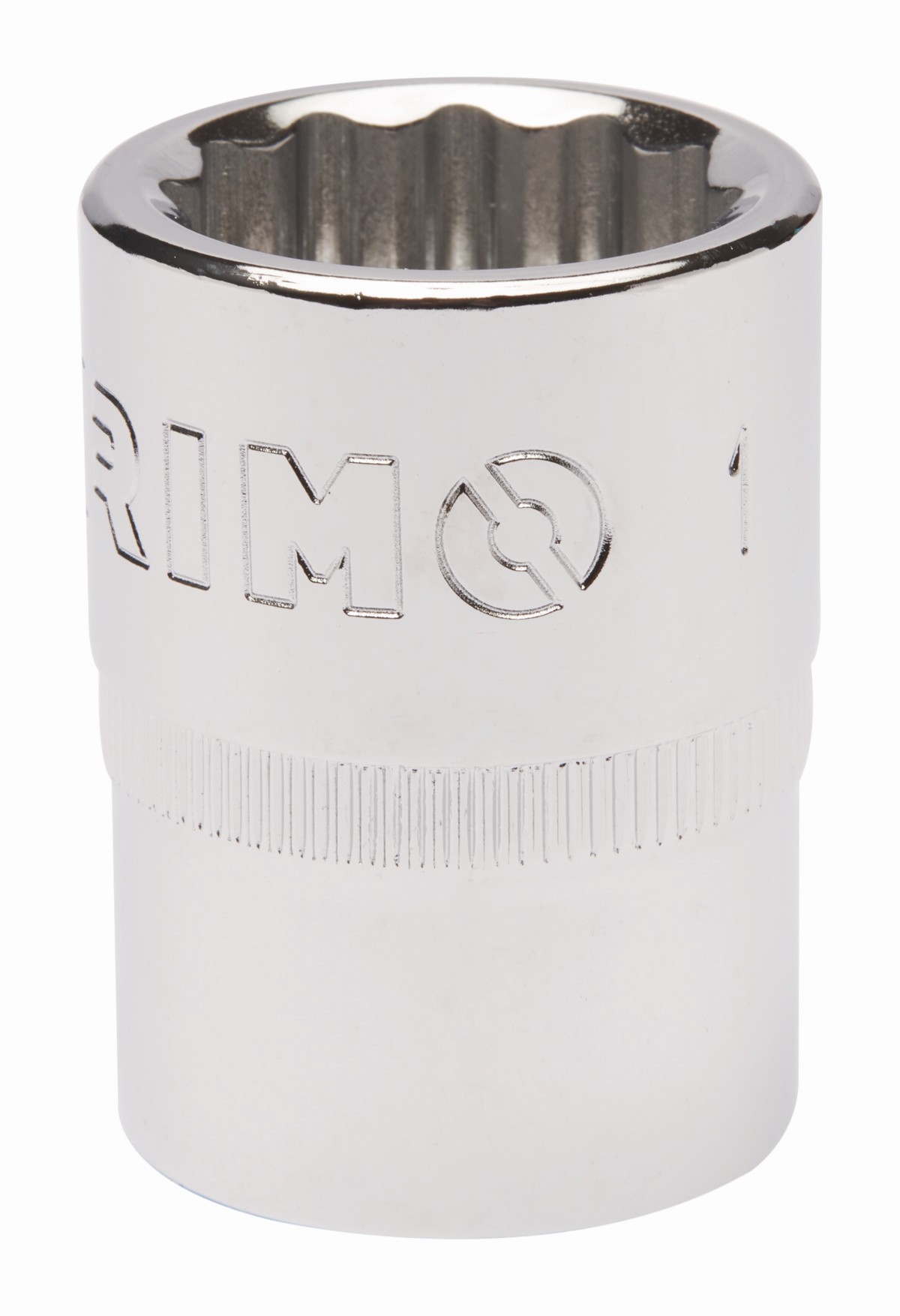

Vasos bi-hexagonales de 3/4", pulgadas | 132A-28-1/132A-64-1
- Vasos de 3/4", bi-hexagonales, dimensiones en pulgadas.
- Aleación de acero al cromo vanadio.
- Acabado cromado brillante.
- Perfil NPP con forma ondulada.
- Normas: DIN3120 y DIN3124.
Proveedor:
SNA EUROPE (BAHCO)Referencias
| Artículo | PVR | Variante | Anchura total | profundidad | Anchura del cuadradillo hembra cuadrado | Longitud total | Medida, pulgadas |  |
|---|---|---|---|---|---|---|---|---|
| 132A-28-1 | - | 132A-28-1 | 33 mm | 12 mm | 36 mm | 50 mm | 7/8 in | 1 |
| 132A-30-1 | - | 132A-30-1 | 35 mm | 16 mm | 36 mm | 50 mm | 15/16 in | 1 |
| 132A-32-1 | - | 132A-32-1 | 38 mm | 16 mm | 36 mm | 52 mm | 1 in | 1 |
| 132A-34-1 | - | 132A-34-1 | 38 mm | 18 mm | 36 mm | 54 mm | 1.1/16 in | 1 |
| 132A-36-1 | - | 132A-36-1 | 42 mm | 18 mm | 38 mm | 55 mm | 1.1/8 in | 1 |
| 132A-40-1 | - | 132A-40-1 | 44 mm | 22 mm | 38 mm | 55 mm | 1.1/4 in | 1 |
| 132A-42-1 | - | 132A-42-1 | 46 mm | 22 mm | 38 mm | 57 mm | 1.5/16 in | 1 |
| 132A-44-1 | - | 132A-44-1 | 48 mm | 24 mm | 42 mm | 57 mm | 1.3/8 in | 1 |
| 132A-46-1 | - | 132A-46-1 | 50 mm | 24 mm | 42 mm | 57 mm | 1.7/16 in | 1 |
| 132A-48-1 | - | 132A-48-1 | 52 mm | 26 mm | 44 mm | 57 mm | 1.1/2 in | 1 |
| 132A-52-1 | - | 132A-52-1 | 56 mm | 27 mm | 44 mm | 63 mm | 1.5/8 in | 1 |
| 132A-54-1 | - | 132A-54-1 | 58 mm | 27 mm | 44 mm | 63 mm | 1.11/16 in | 1 |
| 132A-60-1 | - | 132A-60-1 | 65 mm | 30 mm | 44 mm | 68 mm | 1.7/8 in | 1 |
| 132A-64-1 | - | 132A-64-1 | 68 mm | 33 mm | 44 mm | 72 mm | 2 in | 1 |
