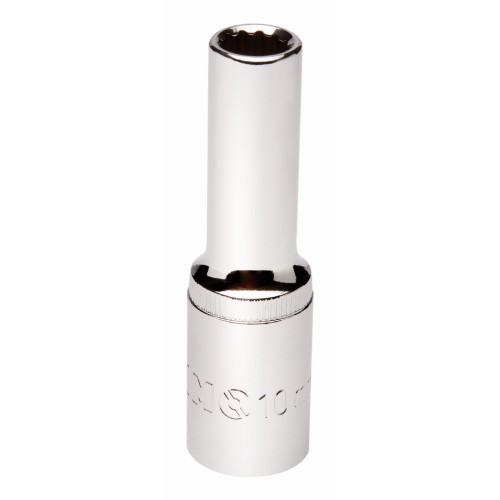

Vasos bi-hexagonales de serie larga de 1/2", mm | 124-10-1/124-32-1
- Vasos serie larga de 1/2", bi-hexagonales, dimensiones en mm.
- Aleación de acero al cromo vanadio.
- Acabado cromado brillante.
- Perfil NPP con forma ondulada.
- Normas: DIN3120 y DIN3124.
Proveedor:
SNA EUROPE (BAHCO)Referencias

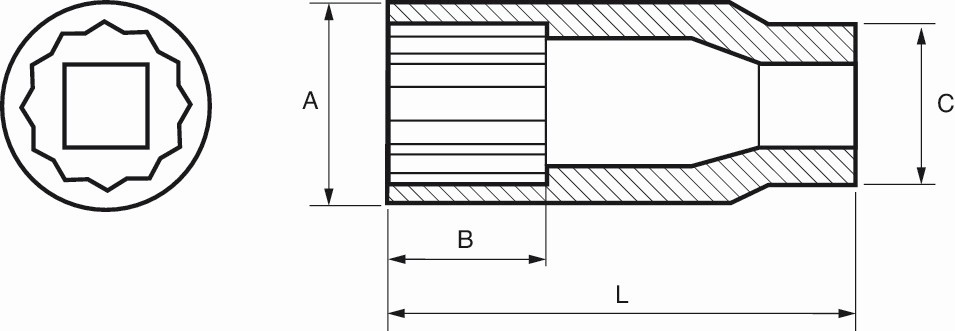

| Artículo | PVR | Variante | Anchura total | profundidad | Longitud total | Anchura del cuadradillo hembra cuadrado | Cabezal del destornillador bi hexagonal, mm |  |
|---|---|---|---|---|---|---|---|---|
| 124-10-1 | - | 124-10-1 | 15,3 mm | 27 mm | 78 mm | 22 mm | 10 mm | 1 |
| 124-11-1 | - | 124-11-1 | 16,5 mm | 27 mm | 78 mm | 22 mm | 11 mm | 1 |
| 124-12-1 | - | 124-12-1 | 17,8 mm | 27 mm | 78 mm | 22 mm | 12 mm | 1 |
| 124-13-1 | - | 124-13-1 | 19 mm | 27 mm | 78 mm | 22 mm | 13 mm | 1 |
| 124-14-1 | - | 124-14-1 | 20,3 mm | 27 mm | 78 mm | 22 mm | 14 mm | 1 |
| 124-15-1 | - | 124-15-1 | 22 mm | 31 mm | 78 mm | 22 mm | 15 mm | 1 |
| 124-16-1 | - | 124-16-1 | 22 mm | 31 mm | 78 mm | 22 mm | 16 mm | 1 |
| 124-17-1 | - | 124-17-1 | 24 mm | 31 mm | 78 mm | 22 mm | 17 mm | 1 |
| 124-18-1 | - | 124-18-1 | 25 mm | 31 mm | 78 mm | 22,8 mm | 18 mm | 1 |
| 124-19-1 | - | 124-19-1 | 26 mm | 31 mm | 78 mm | 22,8 mm | 19 mm | 1 |
| 124-21-1 | - | 124-21-1 | 28 mm | 31 mm | 78 mm | 23,8 mm | 21 mm | 1 |
| 124-22-1 | - | 124-22-1 | 30 mm | 31 mm | 78 mm | 26 mm | 22 mm | 1 |
| 124-24-1 | - | 124-24-1 | 32 mm | 31 mm | 78 mm | 28 mm | 24 mm | 1 |
| 124-27-1 | - | 124-27-1 | 36 mm | 31 mm | 78 mm | 30 mm | 27 mm | 1 |
| 124-30-1 | - | 124-30-1 | 40 mm | 31 mm | 78 mm | 34 mm | 30 mm | 1 |
| 124-32-1 | - | 124-32-1 | 42 mm | 31 mm | 78 mm | 36 mm | 32 mm | 1 |
