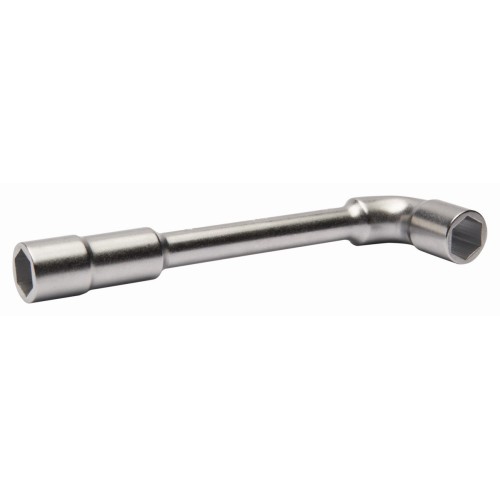

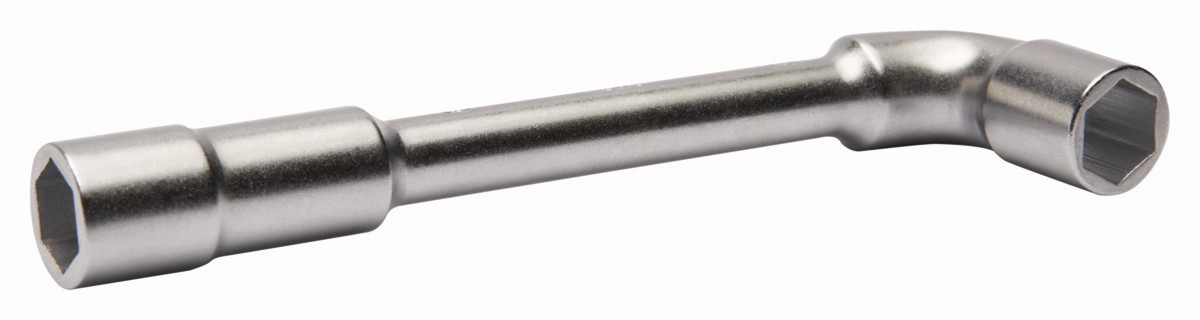

Llaves de tubo en L 6 × 6 | 52-06-1/52-32-1
- Llave de tubo de dos bocas en L en dimensiones métricas
- Las llaves tienen dos bocas hexagonales.
- Acabado: cromado mate.
- Material: aleación de acero de alto rendimiento.
- Dureza: 42-50 HRC.
- Normas: ISO 1711, ISO 691 e ISO 2236.
- -1 blíster.
Proveedor:
SNA EUROPE (BAHCO)Referencias

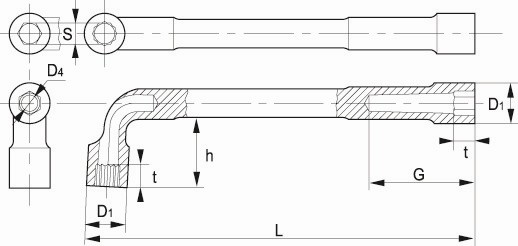

| Artículo | PVR | Variante | Longitud total | Diámetro externo | Diámetro interno | profundidad (mm) (1) | Diámetro | profundidad (mm) (2) | profundidad (mm) (3) |  |
|---|---|---|---|---|---|---|---|---|---|---|
| 52-06-1 | - | 52-06-1 | 102 mm | 10 mm | 4,5 mm | 21 mm | 6 mm | 6 mm | 17 mm | 1 |
| 52-07-1 | - | 52-07-1 | 106 mm | 11 mm | 4,5 mm | 22 mm | 7 mm | 7 mm | 17,5 mm | 1 |
| 52-08-1 | - | 52-08-1 | 114 mm | 12,5 mm | 7 mm | 25 mm | 8 mm | 8 mm | 19,5 mm | 1 |
| 52-09-1 | - | 52-09-1 | 122 mm | 13,5 mm | 7 mm | 26 mm | 9 mm | 9 mm | 20 mm | 1 |
| 52-10-1 | - | 52-10-1 | 129 mm | 15 mm | 8 mm | 28 mm | 10 mm | 10 mm | 24 mm | 1 |
| 52-11-1 | - | 52-11-1 | 136 mm | 16,5 mm | 8 mm | 30 mm | 11 mm | 11 mm | 26,5 mm | 1 |
| 52-12-1 | - | 52-12-1 | 144 mm | 18 mm | 9 mm | 36 mm | 12 mm | 11 mm | 28 mm | 1 |
| 52-13-1 | - | 52-13-1 | 152 mm | 19,5 mm | 9 mm | 38,6 mm | 13 mm | 12 mm | 30 mm | 1 |
| 52-14-1 | - | 52-14-1 | 160 mm | 21 mm | 10,5 mm | 40 mm | 14 mm | 13 mm | 31,5 mm | 1 |
| 52-15-1 | - | 52-15-1 | 169 mm | 22,5 mm | 10,5 mm | 42 mm | 15 mm | 14 mm | 34 mm | 1 |
| 52-16-1 | - | 52-16-1 | 178 mm | 24 mm | 13 mm | 46 mm | 16 mm | 16 mm | 37 mm | 1 |
| 52-17-1 | - | 52-17-1 | 187 mm | 25,5 mm | 13 mm | 48 mm | 17 mm | 17 mm | 39 mm | 1 |
| 52-18-1 | - | 52-18-1 | 195 mm | 26,5 mm | 13 mm | 50 mm | 18 mm | 18 mm | 40 mm | 1 |
| 52-19-1 | - | 52-19-1 | 204 mm | 28,5 mm | 15 mm | 51 mm | 19 mm | 19 mm | 41 mm | 1 |
| 52-20-1 | - | 52-20-1 | 212 mm | 29,5 mm | 15 mm | 53 mm | 20 mm | 20 mm | 43 mm | 1 |
| 52-21-1 | - | 52-21-1 | 221 mm | 30,5 mm | 15 mm | 55 mm | 21 mm | 21 mm | 46 mm | 1 |
| 52-22-1 | - | 52-22-1 | 230 mm | 32 mm | 15 mm | 57 mm | 22 mm | 22 mm | 48 mm | 1 |
| 52-23-1 | - | 52-23-1 | 240 mm | 33,5 mm | 18 mm | 64 mm | 23 mm | 23 mm | 50,5 mm | 1 |
| 52-24-1 | - | 52-24-1 | 250 mm | 34,5 mm | 18 mm | 67 mm | 24 mm | 24 mm | 54 mm | 1 |
| 52-25-1 | - | 52-25-1 | 260 mm | 36 mm | 20 mm | 69 mm | 25 mm | 25 mm | 56 mm | 1 |
| 52-26-1 | - | 52-26-1 | 270 mm | 37 mm | 20 mm | 70 mm | 26 mm | 26 mm | 58,5 mm | 1 |
| 52-27-1 | - | 52-27-1 | 280 mm | 38 mm | 22 mm | 73 mm | 27 mm | 27 mm | 58 mm | 1 |
| 52-28-1 | - | 52-28-1 | 290 mm | 39,5 mm | 22 mm | 75 mm | 28 mm | 28 mm | 60 mm | 1 |
| 52-29-1 | - | 52-29-1 | 300 mm | 41 mm | 22 mm | 76 mm | 29 mm | 29 mm | 62 mm | 1 |
| 52-30-1 | - | 52-30-1 | 310 mm | 42 mm | 24 mm | 83 mm | 30 mm | 30 mm | 64 mm | 1 |
| 52-32-1 | - | 52-32-1 | 330 mm | 44,5 mm | 24 mm | 88 mm | 32 mm | 31 mm | 70 mm | 1 |
