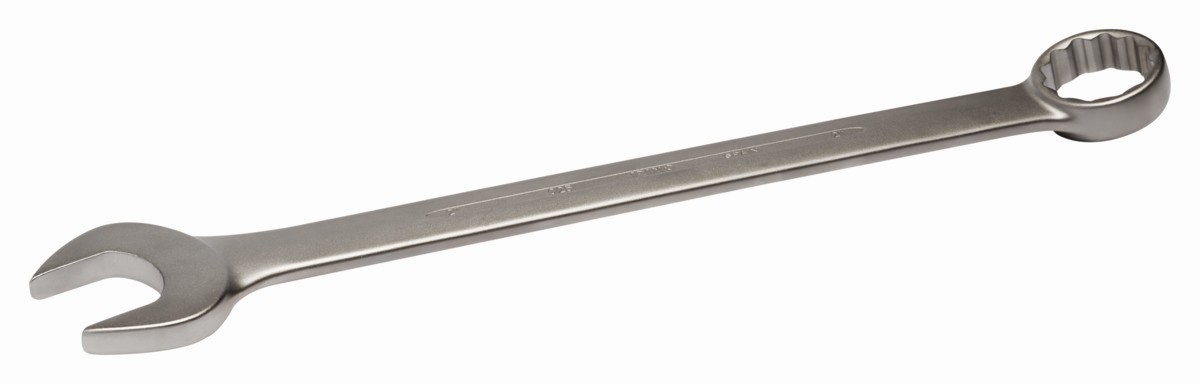

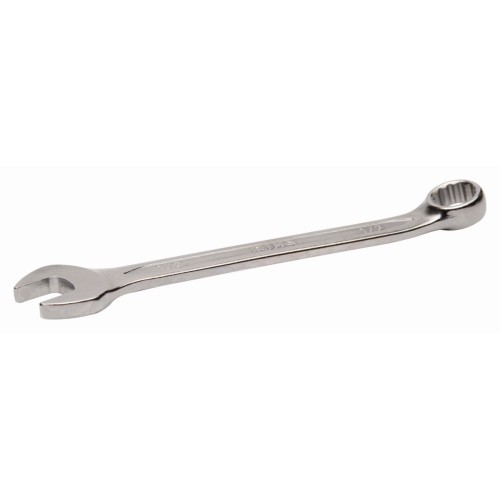

Llaves combinadas, pulgadas | 25A-08-1/25A-32-2
- Llave combinada con dimensiones en pulgadas.
- Acabado: cromado mate.
- Material: aleación de acero de alto rendimiento.
- Dureza: 42-50 HRC.
- Normas: ISO 10102.

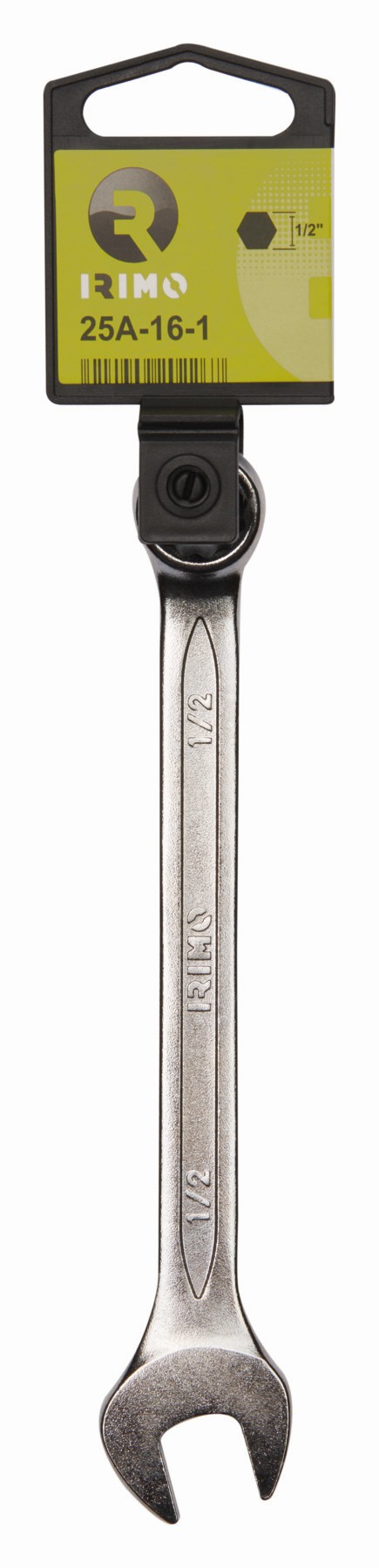

- -1 blíster; -2 embalajes industriales.
Proveedor:
SNA EUROPE (BAHCO)Referencias

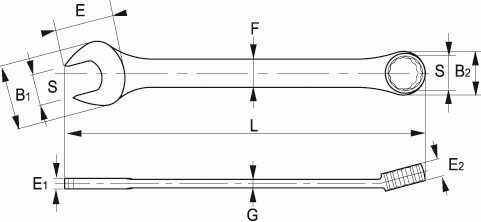

| Artículo | PVR | Variante | Longitud de la cabeza | Diámetro externo (mm) (1) | Grosor de la cabeza (mm) (1) | Longitud total | Anchura del mango del destornillador | Grosor | Diámetro interno pulgadas | Diámetro externo (mm) (2) | Grosor de la cabeza (mm) (2) |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25A-08-1 | - | 25A-08-1 | 7.9 mm | 15.9 mm | 3.7 mm | 103 mm | 6.6 mm | 3 mm | 1/4 in | 10.6 mm | 5.2 mm | 1 |
| 25A-08-2 | - | 25A-08-2 | 7.9 mm | 15.9 mm | 3.7 mm | 103 mm | 6.6 mm | 3 mm | 1/4 in | 10.6 mm | 5.2 mm | 1 |
| 25A-10-1 | - | 25A-10-1 | 9.9 mm | 19 mm | 4 mm | 119 mm | 7.2 mm | 3.3 mm | 5/16 in | 13.6 mm | 6 mm | 1 |
| 25A-10-2 | - | 25A-10-2 | 9.9 mm | 19 mm | 4 mm | 119 mm | 7.2 mm | 3.3 mm | 5/16 in | 13.6 mm | 6 mm | 1 |
| 25A-12-1 | - | 25A-12-1 | 10.4 mm | 21.2 mm | 4 mm | 124 mm | 8.3 mm | 3.4 mm | 3/8 in | 15.1 mm | 6.8 mm | 1 |
| 25A-12-2 | - | 25A-12-2 | 10.4 mm | 21.2 mm | 4 mm | 124 mm | 8.3 mm | 3.4 mm | 3/8 in | 15.1 mm | 6.8 mm | 1 |
| 25A-14-1 | - | 25A-14-1 | 12.6 mm | 26 mm | 4.8 mm | 143 mm | 9.5 mm | 3.6 mm | 7/16 in | 17.1 mm | 7.5 mm | 1 |
| 25A-14-2 | - | 25A-14-2 | 12.6 mm | 26 mm | 4.8 mm | 143 mm | 9.5 mm | 3.6 mm | 7/16 in | 17.1 mm | 7.5 mm | 1 |
| 25A-16-1 | - | 25A-16-1 | 14.6 mm | 30 mm | 5.2 mm | 164 mm | 11.9 mm | 4.2 mm | 1/2 in | 20.2 mm | 8.3 mm | 1 |
| 25A-16-2 | - | 25A-16-2 | 14.6 mm | 30 mm | 5.2 mm | 164 mm | 11.9 mm | 4.2 mm | 1/2 in | 20.2 mm | 8.3 mm | 1 |
| 25A-18-1 | - | 25A-18-1 | 15.8 mm | 30 mm | 5.8 mm | 174 mm | 11.8 mm | 4.6 mm | 9/16 in | 21.2 mm | 8.9 mm | 1 |
| 25A-18-2 | - | 25A-18-2 | 15.8 mm | 30 mm | 5.8 mm | 174 mm | 11.8 mm | 4.6 mm | 9/16 in | 21.2 mm | 8.9 mm | 1 |
| 25A-20-1 | - | 25A-20-1 | 17.6 mm | 35.3 mm | 6.3 mm | 194 mm | 13.6 mm | 5 mm | 5/8 in | 23.8 mm | 9.5 mm | 1 |
| 25A-20-2 | - | 25A-20-2 | 17.6 mm | 35.3 mm | 6.3 mm | 194 mm | 13.6 mm | 5 mm | 5/8 in | 23.8 mm | 9.5 mm | 1 |
| 25A-22-1 | - | 25A-22-1 | 20.5 mm | 39.4 mm | 6.7 mm | 214 mm | 14.8 mm | 5.2 mm | 11/16 in | 26.8 mm | 10.5 mm | 1 |
| 25A-22-2 | - | 25A-22-2 | 20.5 mm | 39.4 mm | 6.7 mm | 214 mm | 14.8 mm | 5.2 mm | 11/16 in | 26.8 mm | 10.5 mm | 1 |
| 25A-24-1 | - | 25A-24-1 | 21.1 mm | 41.6 mm | 7 mm | 228 mm | 16.2 mm | 5.2 mm | 3/4 in | 28.3 mm | 11.2 mm | 1 |
| 25A-24-2 | - | 25A-24-2 | 21.1 mm | 41.6 mm | 7 mm | 228 mm | 16.2 mm | 5.2 mm | 3/4 in | 28.3 mm | 11.2 mm | 1 |
| 25A-26-1 | - | 25A-26-1 | 22.8 mm | 45.4 mm | 8.6 mm | 249.5 mm | 17.3 mm | 6 mm | 13/16 in | 32.4 mm | 12.6 mm | 1 |
| 25A-26-2 | - | 25A-26-2 | 22.8 mm | 45.4 mm | 8.6 mm | 249.5 mm | 17.3 mm | 6 mm | 13/16 in | 32.4 mm | 12.6 mm | 1 |
| 25A-28-1 | - | 25A-28-1 | 22.8 mm | 45.4 mm | 8.6 mm | 249.5 mm | 17.3 mm | 6 mm | 7/8 in | 32.4 mm | 12.6 mm | 1 |
| 25A-28-2 | - | 25A-28-2 | 22.8 mm | 45.4 mm | 8.6 mm | 249.5 mm | 17.3 mm | 6 mm | 7/8 in | 32.4 mm | 12.6 mm | 1 |
| 25A-30-1 | - | 25A-30-1 | 25 mm | 49.7 mm | 9.2 mm | 270 mm | 20.3 mm | 6.4 mm | 15/16 in | 36.1 mm | 13.6 mm | 1 |
| 25A-30-2 | - | 25A-30-2 | 25 mm | 49.7 mm | 9.2 mm | 270 mm | 20.3 mm | 6.4 mm | 15/16 in | 36.1 mm | 13.6 mm | 1 |
| 25A-32-1 | - | 25A-32-1 | 27.6 mm | 53.4 mm | 9.6 mm | 289.5 mm | 22.5 mm | 6.8 mm | 1 in | 39.6 mm | 14.2 mm | 1 |
| 25A-32-2 | - | 25A-32-2 | 27.6 mm | 53.4 mm | 9.6 mm | 289.5 mm | 22.5 mm | 6.8 mm | 1 in | 39.6 mm | 14.2 mm | 1 |
| 25A-34-1 | - | 25A-34-1 | 29.5 mm | 58.4 mm | 10 mm | 310 mm | 23.3 mm | 7.2 mm | 1.1/16 in | 41.6 mm | 14.6 mm | 1 |
| 25A-36-1 | - | 25A-36-1 | 32.1 mm | 60.4 mm | 10.6 mm | 330 mm | 23.3 mm | 7.6 mm | 1.1/8 in | 45.6 mm | 15.6 mm | 1 |
| 25A-40-1 | - | 25A-40-1 | 35.6 mm | 67.4 mm | 11.2 mm | 349 mm | 25.3 mm | 8 mm | 1.1/4 in | 48.8 mm | 17.8 mm | 1 |
| 25A-44-1 | - | 25A-44-1 | 35.6 mm | 67.4 mm | 11.2 mm | 350 mm | 25.3 mm | 8 mm | 1.3/8 in | 48.8 mm | 17.8 mm | 1 |
| 25A-46-1 | - | 25A-46-1 | 62 mm | 74 mm | 10.4 mm | 401 mm | 31 mm | 8 mm | 1.7/16 in | 54 mm | 17 mm | 1 |
| 25A-48-1 | - | 25A-48-1 | 62 mm | 74 mm | 10.4 mm | 401 mm | 31 mm | 8 mm | 1.1/2 in | 54 mm | 17 mm | 1 |
| 25A-52-1 | - | 25A-52-1 | 70 mm | 80 mm | 11.5 mm | 435 mm | 34 mm | 8 mm | 1.5/8 in | 61 mm | 19.5 mm | 1 |
| 25A-58-1 | - | 25A-58-1 | 79.8 mm | 91 mm | 15 mm | 555 mm | 34 mm | 11 mm | 1.13/16 in | 66 mm | 23 mm | 1 |
| 25A-64-1 | - | 25A-64-1 | 86.7 mm | 100 mm | 17 mm | 602 mm | 36.6 mm | 12 mm | 2 in | 73 mm | 26 mm | 1 |
