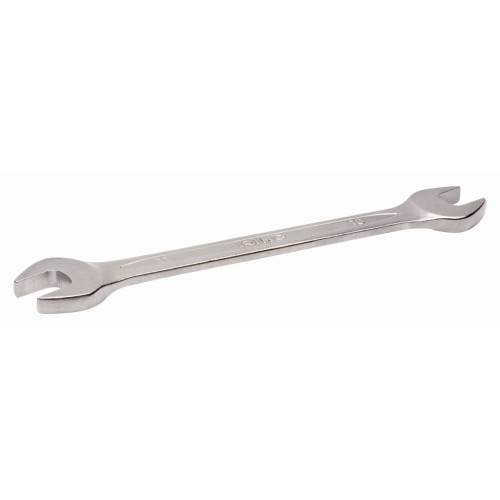

Llaves fijas de dos bocas | 10-0405-1/10-3032-1
- Llave fija de dos bocas en dimensiones métricas.
- Acabado: cromado mate.
- Material: aleación de acero de alto rendimiento.
- Dureza: 42-50 HRC.
- Normas: ISO 10102.
- -1 blíster.
Proveedor:
SNA EUROPE (BAHCO)Referencias

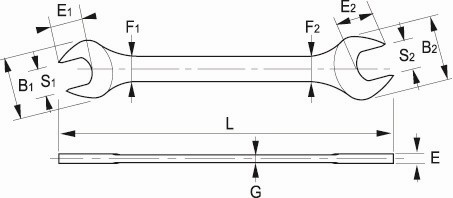

| Artículo | PVR | Variante | Longitud total | Grosor de la cabeza | Grosor | Dimensiones | Diámetro externo | Anchura del mango del destornillador | Longitud |  |
|---|---|---|---|---|---|---|---|---|---|---|
| 10-0405-1 | - | 10-0405-1 | 105 mm | 3,2 mm | 2.5 mm | 4x5 mm | 13x15 mm | 6.5x7.5 mm | 7.2x7 mm | 1 |
| 10-0607-1 | - | 10-0607-1 | 122 mm | 4,1 mm | 2.8 mm | 6x7 mm | 17.4x19.4 mm | 7.5x8.5 mm | 8.1x9 mm | 1 |
| 10-0809-1 | - | 10-0809-1 | 137 mm | 4,6 mm | 3.3 mm | 8x9 mm | 20.4x22.4 mm | 8.5x9.5 mm | 10.5x11.2 mm | 1 |
| 10-1011-1 | - | 10-1011-1 | 151.4 mm | 5,4 mm | 3.8 mm | 10x11 mm | 24.2x27.2 mm | 10.5x11.5 mm | 11.6x13.3 mm | 1 |
| 10-1013-1 | - | 10-1013-1 | 151.4 mm | 5,4 mm | 3.8 mm | 10x13 mm | 24.2x37.2 mm | 10.5x11.5 mm | 11.6x13.3 mm | 1 |
| 10-1213-1 | - | 10-1213-1 | 166.5 mm | 6,1 mm | 4 mm | 12x13 mm | 29.4x31.4 mm | 12.5x13.5 mm | 13.6x15.3 mm | 1 |
| 10-1415-1 | - | 10-1415-1 | 182 mm | 6,5 mm | 4.4 mm | 14x15 mm | 32.4x35.4 mm | 13.5x14.5 mm | 16x17.5 mm | 1 |
| 10-1617-1 | - | 10-1617-1 | 196.5 mm | 6,9 mm | 4.8 mm | 16x17 mm | 36.4x38.4 mm | 15.5x16.5 mm | 18.5x19.6 mm | 1 |
| 10-1719-1 | - | 10-1719-1 | 221 mm | 7,4 mm | 5.1 mm | 17x19 mm | 40.4x42.4 mm | 16.5x18.5 mm | 20.8x22.4 mm | 1 |
| 10-1819-1 | - | 10-1819-1 | 211.9 mm | 7,4 mm | 5.1 mm | 18x19 mm | 40.4x42.4 mm | 16.5x18.5 mm | 20.8x21.2 mm | 1 |
| 10-2022-1 | - | 10-2022-1 | 226.9 mm | 8,6 mm | 5.6 mm | 20x22 mm | 43.4x47.4 mm | 18.5x19.5 mm | 23.3x24.5 mm | 1 |
| 10-2123-1 | - | 10-2123-1 | 241.9 mm | 9,2 mm | 5.8 mm | 21x23 mm | 46.4x50.4 mm | 18.5x20.5 mm | 23.6x26 mm | 1 |
| 10-2224-1 | - | 10-2224-1 | 241.9 mm | 9,2 mm | 5.8 mm | 22x24 mm | 46.4x50.4 mm | 18.5x20.5 mm | 23.6x26 mm | 1 |
| 10-2426-1 | - | 10-2426-1 | 261.9 mm | 10 mm | 6.2 mm | 24x26 mm | 50.4x54.4 mm | 21.5x23.5 mm | 27.9x29.8 mm | 1 |
| 10-2427-1 | - | 10-2427-1 | 261.9 mm | 10 mm | 6.2 mm | 27x24 mm | 50.4x54.4 mm | 21.5x23.5 mm | 27.9x29.8 mm | 1 |
| 10-2528-1 | - | 10-2528-1 | 281.9 mm | 10,6 mm | 6.6 mm | 25x28 mm | 54.4x59.4 mm | 23.5x24.5 mm | 28.6x30.7 mm | 1 |
| 10-2729-1 | - | 10-2729-1 | 282.4 mm | 10,6 mm | 6.6 mm | 27x29 mm | 54.6x59.6 mm | 23.5x24.5 mm | 28.6x30.7 mm | 1 |
| 10-3032-1 | - | 10-3032-1 | 302.9 mm | 11 mm | 7 mm | 30x32 mm | 61.4x68.4 mm | 24.5x26.5 mm | 33.4x35.5 mm | 1 |
